Adaptor montare LGX Lite Orbiter Style
80,00 RON
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

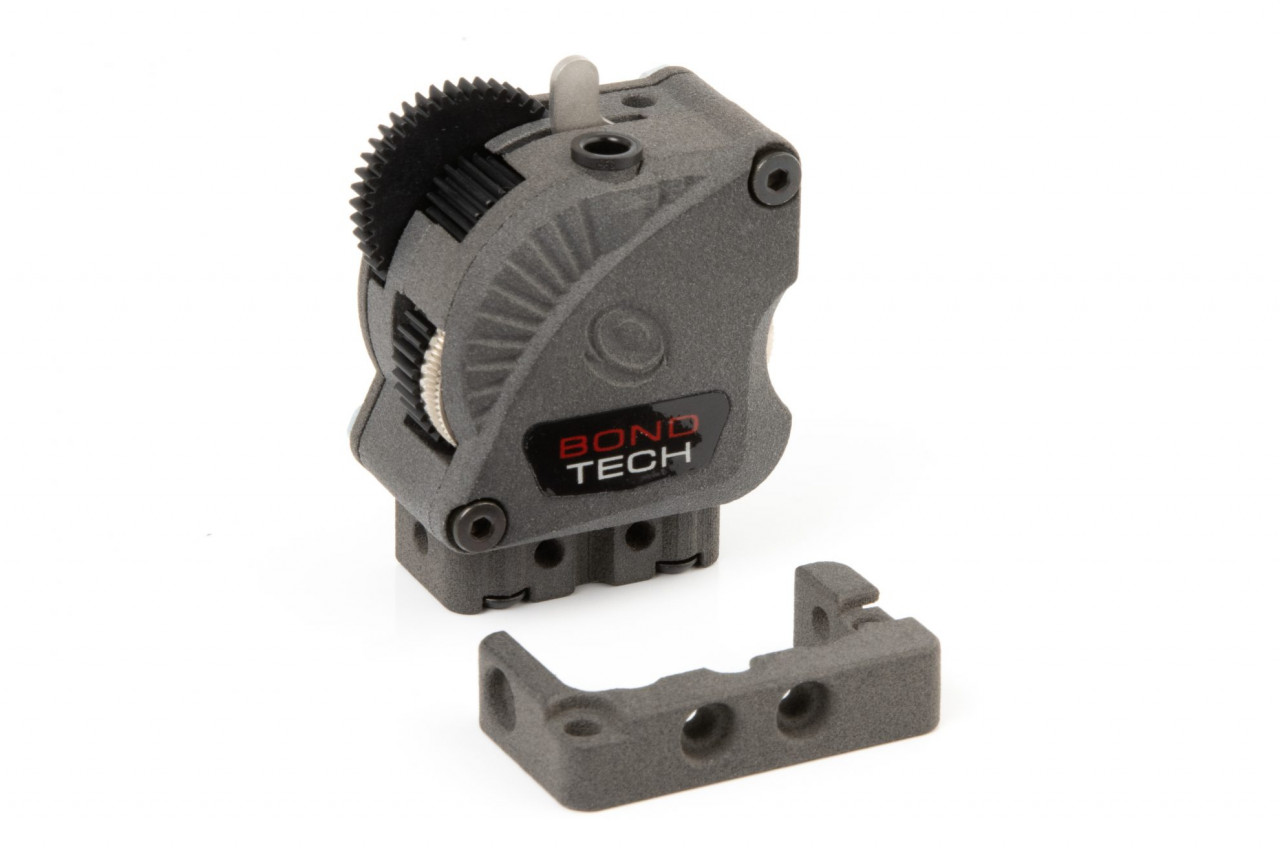

Utilizați acest set pentru a înlocui un extruder Orbiter V1.5 cu un Bondtech LGX Lite
Produsul include:

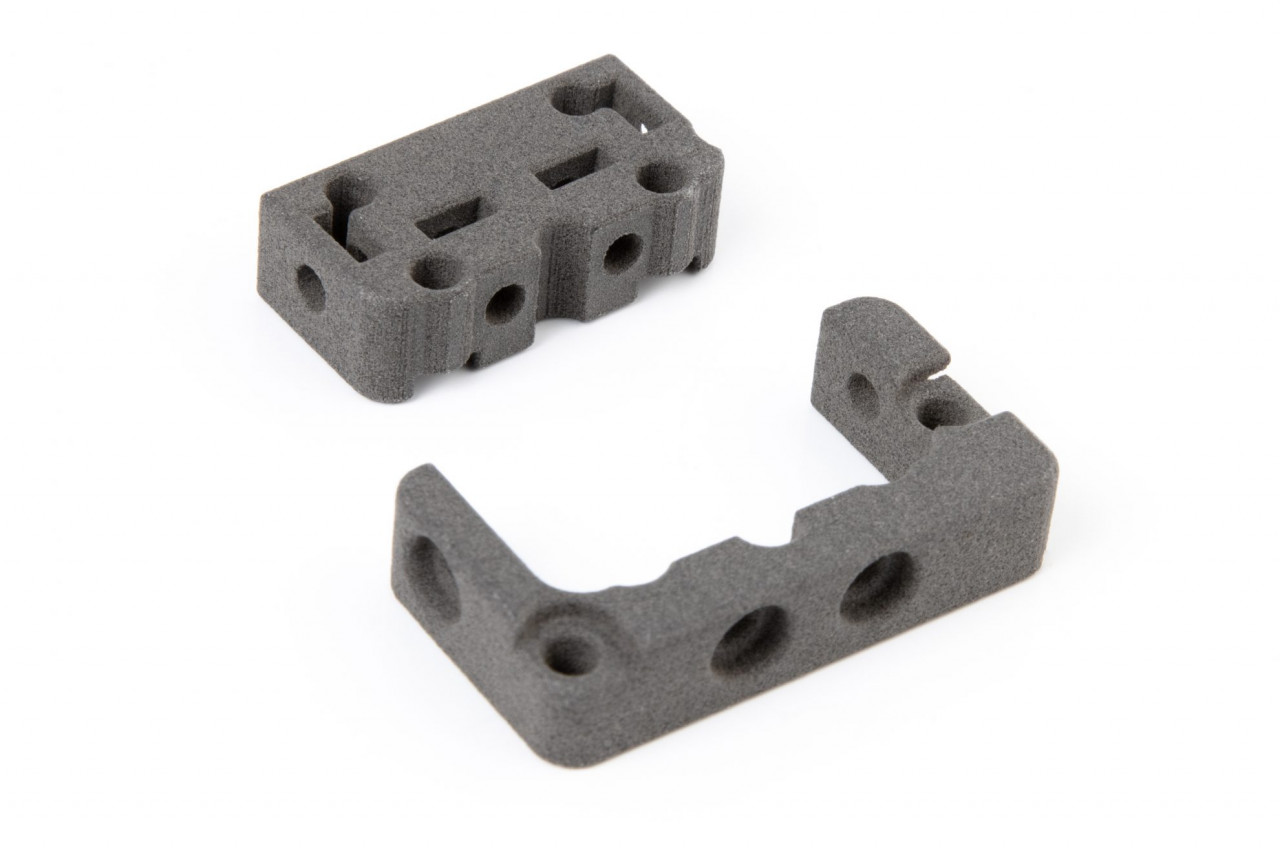

- 1x 10089-1 Adaptor LGX Lite pentru Orbiter
- 1x 10089-2 LGX Lite Mount pentru Orbiter v1.5
- 4x suruburi cu cap bombat M3*10 (BHCS)
- 2x suruburi cu cap bombat M3*8 (BHCS)
- 2x suruburi cu cap bombat M3*12 (BHCS)
- 4x piulițe pătrate M3
Intructiuni pentru montare
.

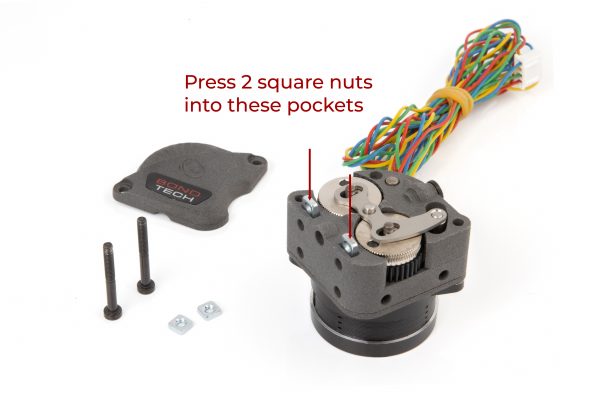

Install 2 square nuts in the bottom front pockets. It is a hard fit. Press them down well.

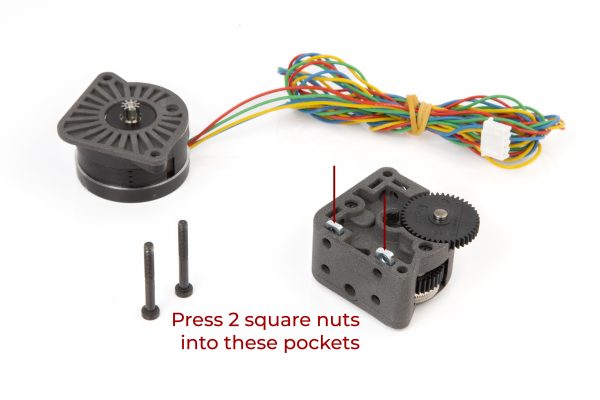

Install 2 square nuts in the bottom rear pockets. It is a hard fit. Press them down well.

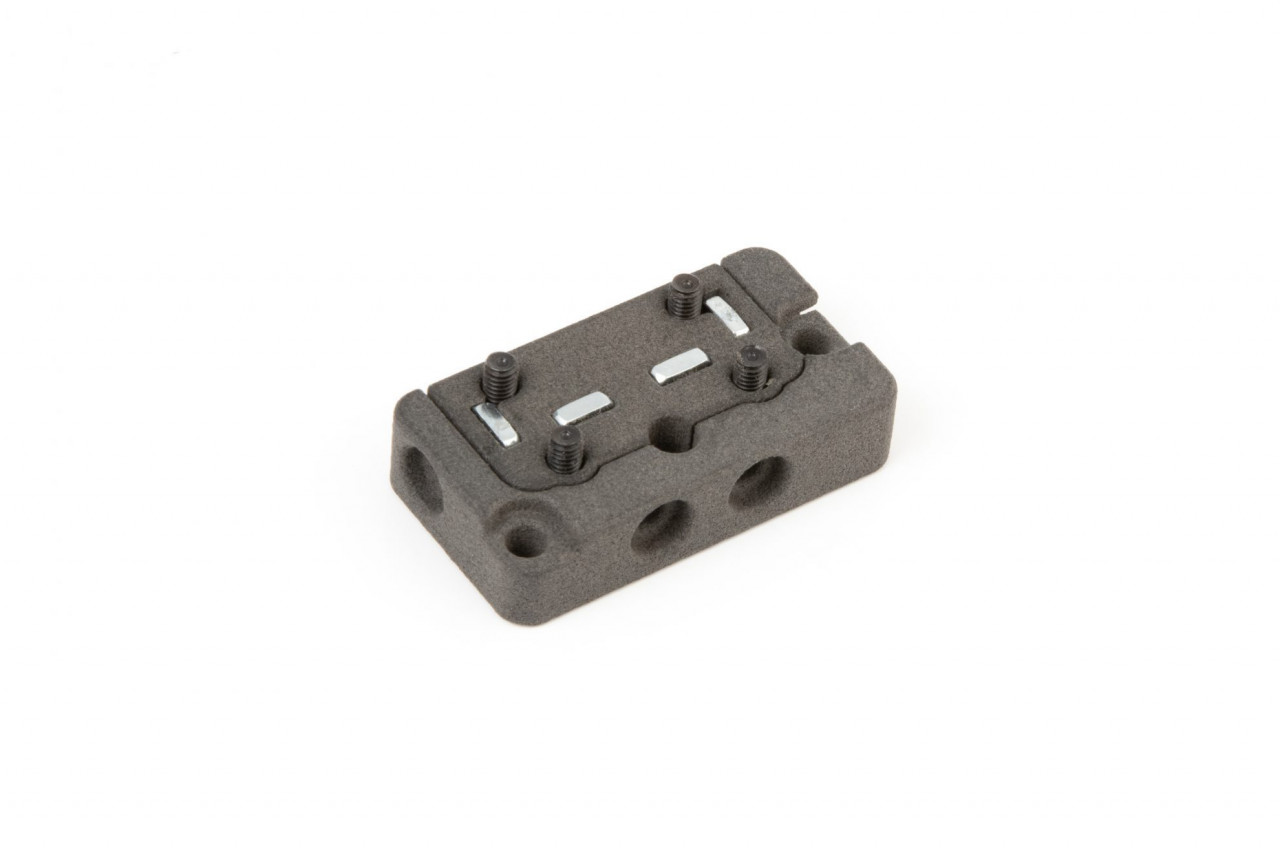

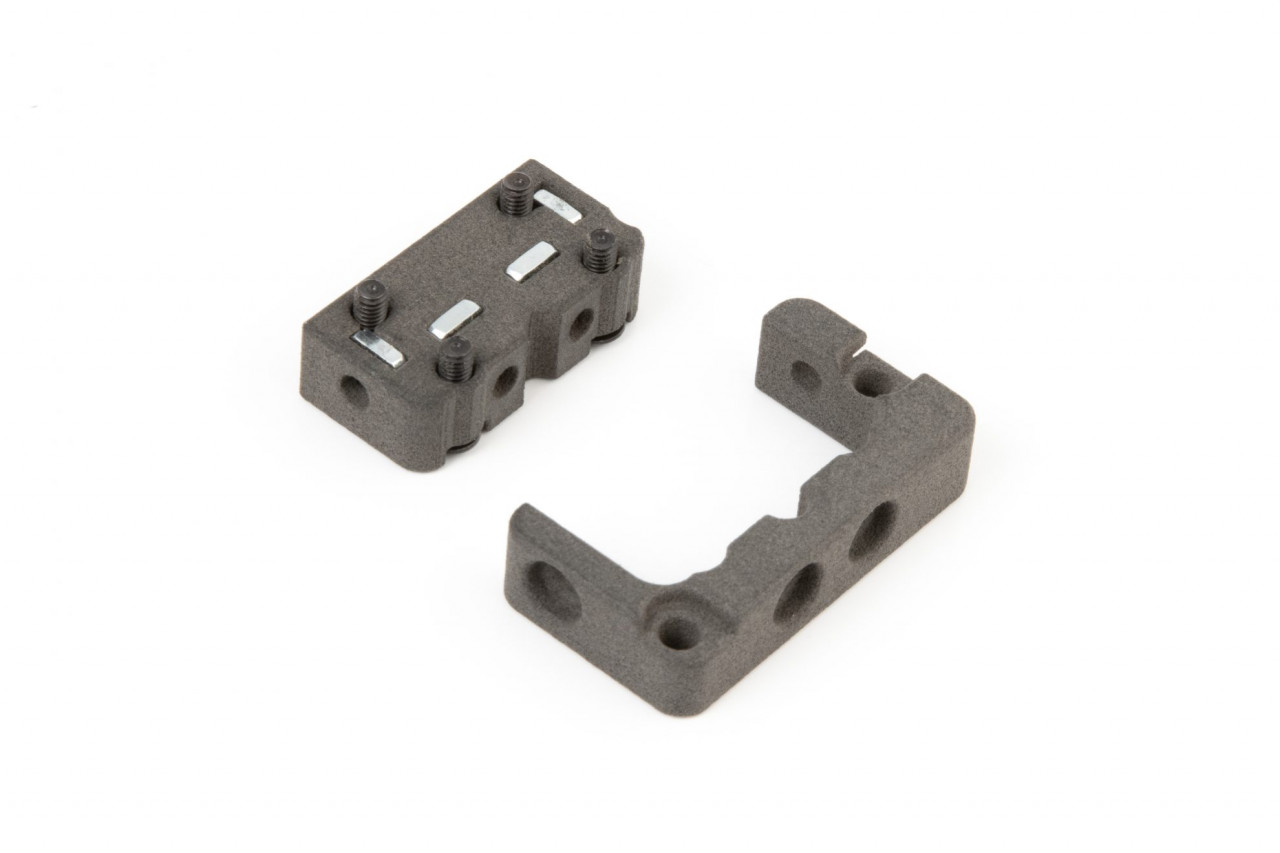

Install the 4 included square nuts in the LGX Lite mount. It is a tight fit. Press them down well and align the holes.
Attach the LGX Lite mount to the LGX Lite with the included 4 M3x10 screws and the Orbiter mount to the carriage where the Orbiter was.

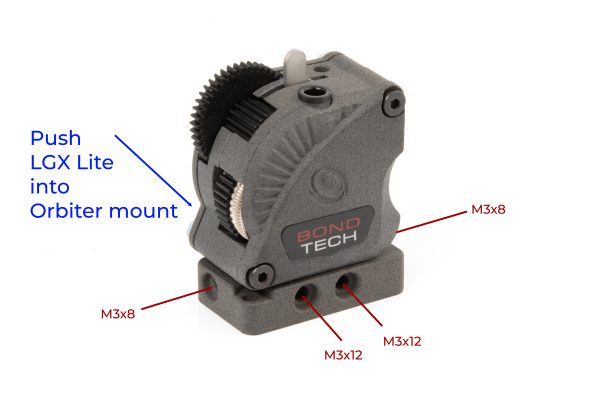

Fit the LGX Lite mount to the Orbiter mount and screw it in place using the included M3x8 and M3x12 screws
Extruderul LGX Lite nu este inclus
